| Accelerometers for HVM |
 |
Precise, Rugged and Affordable
|
| Larson Davis offers a selected range of measurement accelerometers optimized for use with the HVM200 Human Vibration Monitor. They cover the complete range of applications including Hand-arm, Whole-body, and Glove Transmissibility measurements. |
| |
|
Model
|
|
Sensitivity
|
Application
|
Type
|
Weight
|
|
 SEN026
|
|
1.02 mV/ms-2
10 mV/g
|
Glove transmissibility
|
ICP® subminiature triaxial
|
3.1 g
|
|

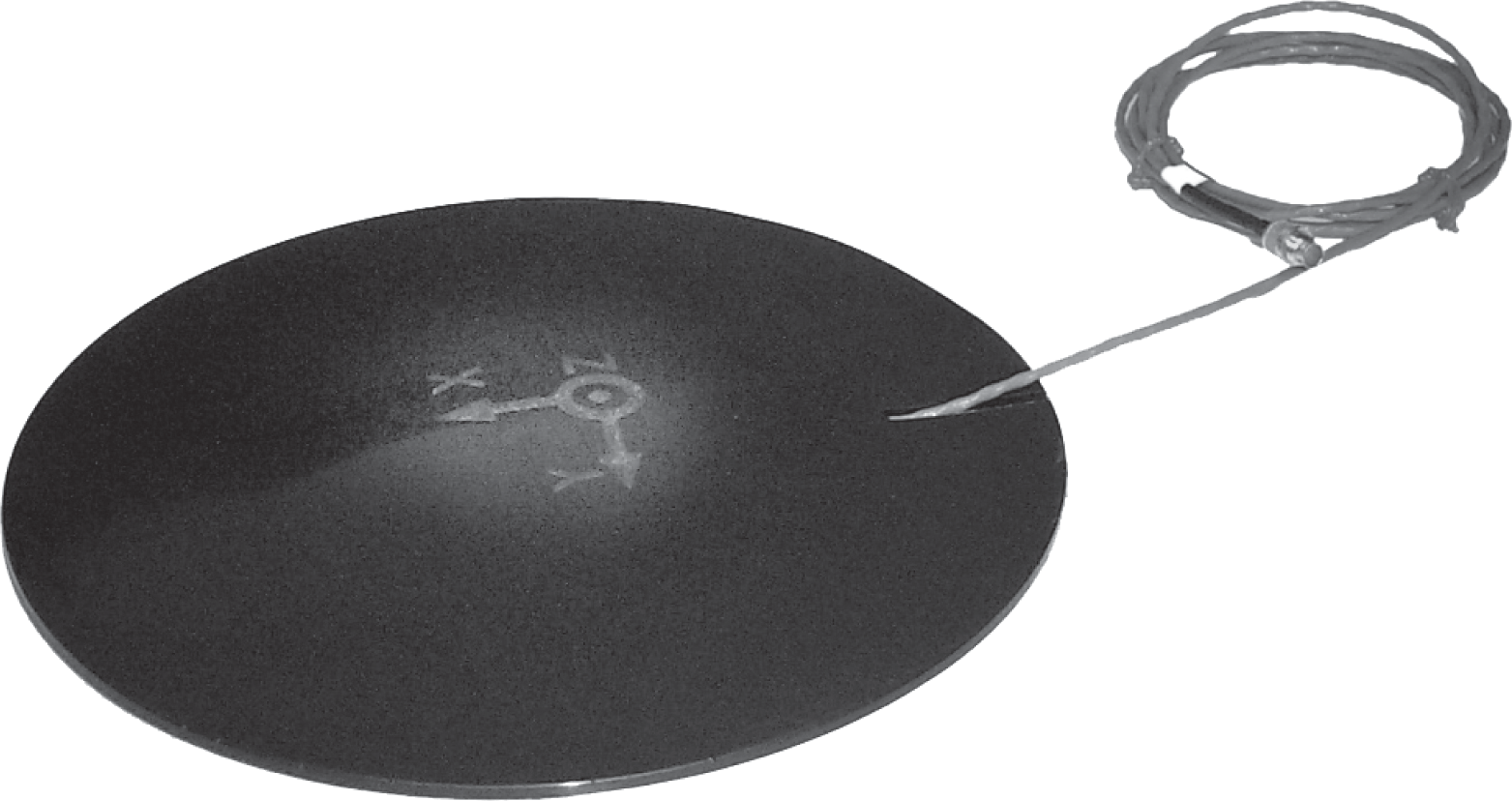

SEN027
|
|
10.2 mV/ms-2
100 mV/g
|
Whole body seat pad
|
ICP® triaxial in removable elastomeric pad
|
272 g
(includes pad)
|
|
SEN040F
|
|
0.1 mV/ms-2
1 mV/g
|
Hand-arm
|
ICP® miniature triaxial with low-pass filter
|
5.3 g
|
|
SEN041F
|
|
1.02 mV/ms-2
10 mV/g
|
Hand-arm
|
ICP® miniature triaxial with low-pass filter
|
5.3 g
|
|
|
